What Is a Stateful Firewall? | Stateful Inspection Firewalls Explained
A stateful firewall is a network security device that monitors and maintains the context of active connections to make decisions about which packets to allow through.
Stateful inspection firewalls permit or deny packets based on preestablished rules and the ongoing connection state. By operating up to Layers 3 and 4, they can prevent unwanted access and inspect the contents of incoming traffic for malicious code.

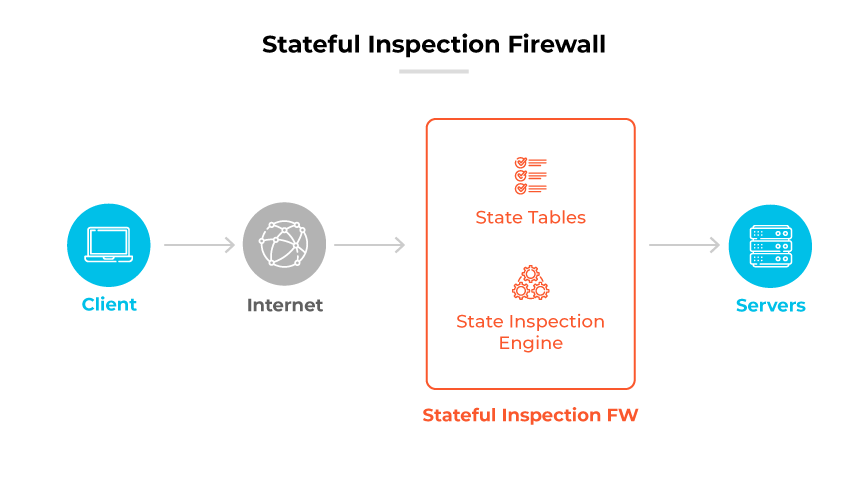

How Does Stateful Inspection Work?
Stateful inspection is a method used by firewalls to monitor and track the characteristics of network connections, such as source and destination IP addresses or port numbers. It records the state of each connection, monitoring for changes and using this contextual information to make security decisions. Unlike stateless inspection, which treats each packet in isolation, stateful inspection understands and tracks the network traffic as a continuous stream. This makes it possible to detect patterns indicative of potential threats.
The process involves building and maintaining a state table that logs every outgoing and incoming packet. Stateful inspection analyzes the packet header to determine whether it is part of an existing conversation or if it is a new request. If a packet does not match an existing connection in the state table, it is evaluated against the set of defined firewall rules to decide whether to allow it to pass.
Stateful inspection differs from static packet filtering, which evaluates packets solely based on header information, such as source and destination IP addresses, and filters them according to established rules. Stateful inspection offers a more in depth analysis by tracking the full context and progress of network traffic, leading to enhanced network security.
How Do Stateful Firewalls Work?
Stateful firewalls (also referred to as stateful inspection firewalls, stateful packet firewalls, and dynamic packet filtering firewalls) operate by keeping a comprehensive record of all active network connections and transactions. This involves tracking each connection from initiation through its entire lifecycle. The firewall uses this ongoing record, or state table, to make informed decisions about which traffic to allow or block, ensuring only legitimate traffic that has been recognized as part of an established connection is permitted.
The mechanism of stateful inspection begins when a network connection is initiated. The stateful firewall monitors the initiation sequence, typically a TCP three-way handshake, and records the packet’s state: open, established, or closed. Each packet transferred across the network is examined, and its headers and flags are compared against the state table. If the packet is part of an existing, approved connection, it is allowed to pass. If not, the stateful inspection firewall consults its rule set to determine the appropriate action.
Beyond the initial connection, stateful inspection continuously updates the state table with details on the ongoing status of the connection, monitoring for any changes that might affect the security decision. This includes dynamically managing sessions, which is particularly important for protocols that do not inherently track session states, like UDP. By monitoring such sessions, the firewall can apply security policies consistently, whether for extended connections or transient communications.
The continuous monitoring extends to the termination of connections, where the firewall ensures that the closure of sessions is legitimate and not an attempt by an attacker to manipulate or bypass security measures. By keeping an active record of each session's lifecycle, the stateful firewall ensures a tight security posture that adapts in real time to the network's operational flow.
Types of Firewalls Defined and Explained

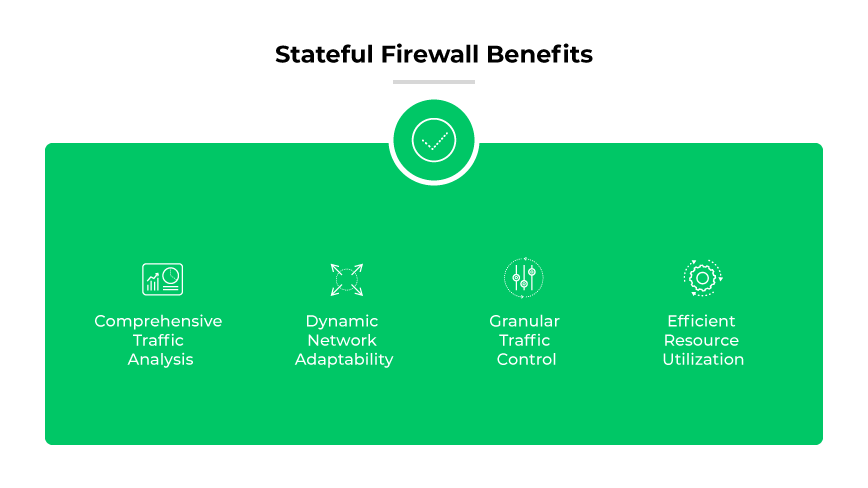

Stateful Firewall Benefits
Enhanced Security Through Comprehensive Traffic Analysis
Stateful inspection firewalls provide an advanced level of security by analyzing both the packet header and payload. This thorough examination allows the firewall to detect and block threats that a simple packet header check would miss. The process also ensures protection against complex attacks that employ sophisticated tactics to breach network defenses.
By tracking the state of network connections, stateful inspection firewalls ensure only packets matching a known active connection are allowed through, while unfamiliar packets are scrutinized against security policies. This ensures unauthorized access attempts are identified and blocked, maintaining a secure network environment for enterprise operations.
Dynamic Network Adaptability
The dynamic nature of stateful inspection allows firewalls to adapt to the ever changing landscape of network traffic flows. By maintaining a state table, these firewalls can adjust filtering strategies in real time as connections are established, utilized, and terminated, providing a responsive security mechanism that adapts to network needs without manual intervention.
Adaptability is crucial for enterprises that require consistent network availability and security despite the fluctuating demands of business operations and the threat environment. Stateful inspection enables firewalls to keep pace with these changes, facilitating a resilient network that supports the continuity of enterprise activities.
Granular Traffic Control
Stateful inspection enables fine grained control over network traffic by allowing administrators to define precise policies based on the context, such as user identity, connection state, and application type. This granularity extends beyond simple allow-or-deny decisions, enabling nuanced security measures that align with the network architecture requirements.
Such detailed control empowers enterprises to enforce differentiated policies that reflect the diverse roles and responsibilities within the organization. It also ensures security measures are effective and aligned with operational needs without imposing unnecessary restrictions on legitimate network activities.
Efficient Resource Utilization
By intelligently managing active connections, stateful inspection firewalls optimize the use of network resources. They reduce the need for constant reevaluation of data packets from established and trusted connections, which minimizes processing overhead and maximizes throughput. Efficient resource utilization ensures security measures do not become a bottleneck for network performance, allowing enterprises to maintain high productivity levels and service availability.
This efficiency is particularly beneficial in complex enterprise environments, where the volume of traffic and need for secure communication channels are both high. Stateful inspection firewalls balance security and performance demands.
Stateful Firewall Challenges
Configuration Complexity
Stateful inspection firewalls require meticulous configuration to effectively manage and maintain the state table for all network connections. This can pose a challenge for some IT administrators. Configuration requires a deep understanding of network protocols and security policies.
The precision required for setting up a stateful firewall can be time consuming, and any misconfiguration may lead to vulnerabilities or disruptions in network service. The detailed nature of these configurations also necessitates regular updates and reviews to ensure the firewall remains effective against new types of threats.
Limitations in Application Layer Defense
While stateful firewalls excel in monitoring and controlling traffic at the network and transport layers, they may not have the inherent capabilities to inspect or mitigate threats targeting the application layer. Advanced cyber attacks that exploit the application layer can bypass protections offered by stateful firewalls.
To address these gaps, enterprises often need to implement supplementary solutions. Supplementary solutions can include application layer firewalls or intrusion prevention systems, which can inspect traffic at the application layer and defend against sophisticated threats that operate at this level.
Absence of User Authentication
Stateful inspection firewalls inspect and filter traffic based on protocol states and connection information but typically do not authenticate the users behind the traffic. This limitation means stateful inspection firewalls cannot verify the identity of the individuals or systems initiating the network connections, which is a key aspect of a robust security posture.
Without this capability, stateful firewalls cannot differentiate between traffic initiated by legitimate users and potential attackers, highlighting the need for additional authentication mechanisms to secure network access at the user level.
Inadequate Web Application Security
Many stateful firewalls are not designed to provide security for web applications, which often utilize dynamic port numbers and complex interactions that extend beyond traditional network protocols. As businesses increasingly rely on web applications, the inability of stateful firewalls to protect these applications can leave a significant portion of an enterprise's digital infrastructure exposed to attacks.
Organizations must therefore consider integrating web application firewalls that specialize in securing applications against a wide range of web based threats, including those that stateful firewalls are not equipped to handle.

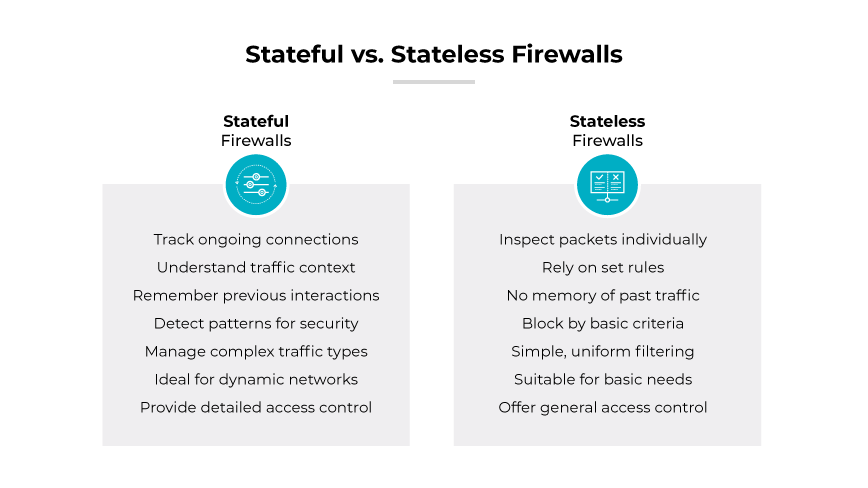

Stateful vs. Stateless Firewalls
| Stateful vs. Stateless Firewalls | |
|---|---|
| Stateful Firewalls | Stateless Firewalls |
|
|
Stateful and stateless firewalls serve the essential function of controlling network traffic, but they differ significantly in their approach to traffic management and security. Stateless firewalls inspect each data packet independently against a set of predefined rules known as access control lists (ACLs). These rules might include permissions or denials based on IP addresses and TCP/UDP ports, effectively creating a filter that applies uniformly to all data packets without consideration for the larger context of the network traffic.
Stateful firewalls, in contrast, take into account the state of network connections. They maintain a state table that tracks every communication channel over time, allowing them to understand the context of a packet within a given connection. This means that a stateful firewall can remember previous packets in a session and recognize if an incoming packet is part of an established connection, starting a new one, or is unsolicited. A stateless firewall cannot.
The critical advantage of stateful over stateless firewalls lies in their ability to monitor the entirety of a communication session, not just a singular packet. This monitoring allows stateful firewalls to detect and prevent threats that rely on specific sequences of packets or connections, providing a higher level of security. For example, a stateful firewall can distinguish between different types of traffic on the same port, allowing for more sophisticated control over which services can send or receive data through the network.
Stateless firewalls are generally more cost effective and can be suited for small business needs that involve little to no sensitive data.
While both stateful and stateless firewalls can implement basic access control, stateful firewalls offer more nuanced security by understanding and utilizing the history and state of network connections. This distinction makes stateful firewalls particularly valuable in enterprise environments where security needs are complex and evolving.
