What Is a Circuit Level Gateway?
A circuit level gateway is a type of firewall that validates TCP or UDP sessions on layer 5 of the OSI model before allowing traffic through.
Circuit level gateways act as a handshaking device between trusted clients or servers and untrusted hosts. It ensures session packets adhere to established rules for a connection without examining data within the packets. The gateway acts as a checkpoint that quickly confirms or denies traffic based on session specific criteria.
How Circuit Level Gateways Work

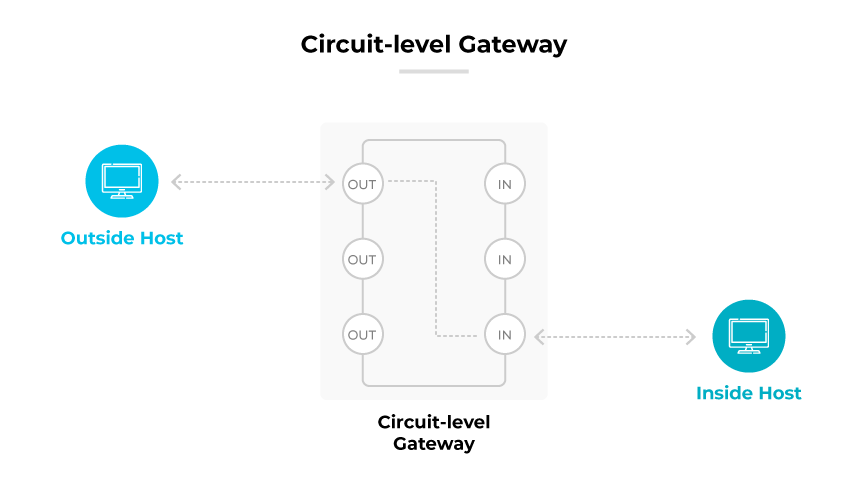

A circuit level gateway functions as a semi-transparent bridge between a trusted internal network and an untrusted external one. It operates at the session layer of the OSI model, where it monitors and validates TCP (transmission control protocol) and UDP (user datagram protocol) packets on a virtual circuit between the two transport layers. By confirming each session is legitimate and authorized, the gateway controls the flow of traffic without the need to inspect the contents of each data packet.
During operation, a circuit level gateway scrutinizes the TCP handshaking process to ensure the session initiation is genuine between trusted clients or servers to trusted hosts and vice versa. If the initial handshake matches established security policies, the gateway permits the connection. It creates a virtual circuit for the duration of the session, across which all traffic is allowed to flow unimpeded.
This type of gateway maintains a table of all established sessions and their corresponding security attributes. The attributes include the source and destination IP addresses and port numbers, as well as session specific details such as timeouts. The gateway uses this information to manage ongoing traffic, allowing or disallowing data packets based on their session's validity.
While a circuit level gateway effectively confirms the validity of a TCP connection, it does not inspect the payload of the data packets. This means that if the session was established correctly, subsequent traffic, including potentially malicious content, could pass through without deeper inspection. This characteristic underscores the importance of pairing circuit level gateways with more in-depth firewall technologies, such as next generation firewalls, for comprehensive network protection.
When a session is terminated, the circuit level gateway removes it from the session table, effectively closing the virtual circuit. This action ensures that stale or unauthorized connections do not persist, maintaining the integrity of the internal network’s security posture.
Circuit Level Gateway Features
Session Layer Operation
A circuit level gateway operates at the session layer of the OSI model. This positioning allows it to manage and validate sessions by monitoring and authenticating the TCP or UDP handshakes that establish network connections.
Privacy Preservation
The privacy of a network using a circuit level gateway is enhanced because the gateway does not expose the internal network's details. It acts as an intermediary that conceals the host’s identity from the external serving host and only permits verified sessions, which maintains the network's confidentiality.
Standalone System
As a standalone system, a circuit level gateway can function independently to provide network security. It does not necessarily require integration with other security systems to manage and control session based traffic.
Security Policy Enforcement
Gateways enforce security policies by establishing a set of rules for session validation. They ensure all sessions adhere to predefined security standards before allowing data packets to pass through.
Virtual Circuit Connection
Circuit level gateways create a virtual circuit for each validated session, which provides a secure channel for data transmission. This feature helps to maintain a connection's integrity throughout its active phase.
Reporting and Analysis
By offering reporting capabilities, circuit level gateways enable network administrators to review and fine tune security approaches. These reports provide insights into session activities and potential security breaches.

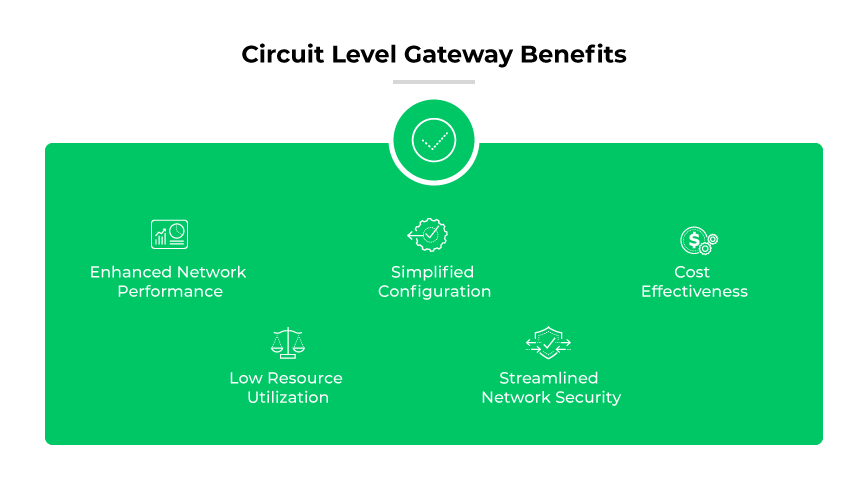

Circuit Level Gateway Benefits
Enhanced Network Performance
Circuit level gateways improve network efficiency. They work at the session layer, which allows them to process connections quickly without the need for deep packet inspection and minimizes latency.
Simplified Configuration
The setup for circuit level gateways is straightforward. They focus on the state of connections, reducing the complexity involved in configuring detailed rules that are required by more advanced firewall solutions.
Cost Effectiveness
Circuit level gateways are cost effective solutions. Their less complex nature translates into lower operational costs, making them accessible for businesses looking to secure networks effectively.
Low Resource Utilization
Operating primarily at the session layer, circuit level gateways use fewer resources compared to other firewall types. This lean operation is beneficial for maintaining overall system performance.
Streamlined Network Security
Unlike other firewalls, circuit level gateways do not require a separate proxy server for each application, which simplifies network security management and reduces overhead.

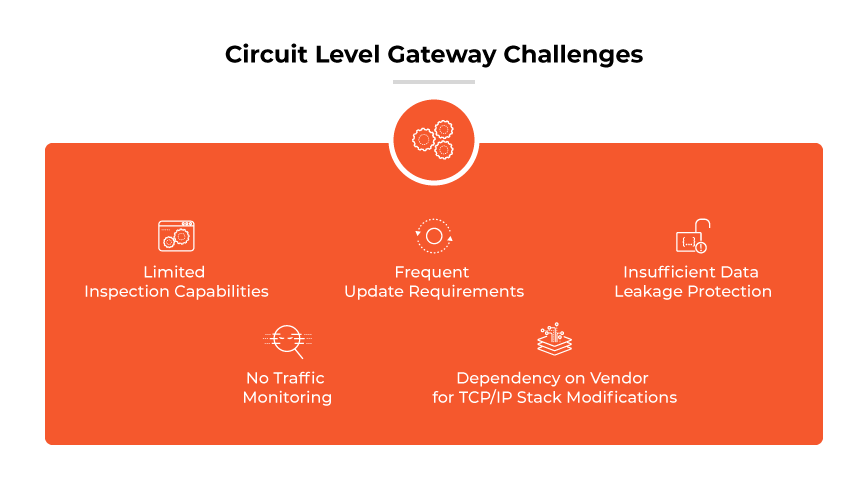

Circuit Level Gateway Challenges
Limited Inspection Capabilities
Since circuit level gateways do not inspect the contents of individual data packets, packets with malicious content can pass through if they are part of an approved session.
Frequent Update Requirements
To maintain efficacy against evolving threats, circuit level gateways require regular updates. These updates can be resource intensive, demanding attention from IT staff to ensure the gateway's security measures are current.
Insufficient Data Leakage Protection
While managing session integrity, circuit level gateways offer no defense against data leakage from within the network. This necessitates the integration of additional security solutions to safeguard sensitive information.
No Traffic Monitoring
Circuit level gateways lack the capability to monitor network traffic for suspicious behavior beyond verifying session handshakes. This narrow focus can miss other indicators of security breaches or network issues.
Dependency on Vendor for TCP/IP Stack Modifications
Circuit level gateways are only compatible with TCP connections. The effectiveness of circuit level gateways is closely tied to the proper configuration of the TCP/IP stack, which typically requires vendor intervention for updates and modifications.
When Should You Use a Circuit Level Gateway?
A circuit level gateway may be suited for environments where speed and resource efficiency are paramount. Organizations that require rapid session validation without the processing overhead of in depth packet inspection might find them useful. They are often employed in scenarios where a balance between basic security measures and network performance is necessary, and when network latency introduced by more comprehensive security systems is a concern.
This type of gateway is sometimes used by smaller to medium-sized enterprises that need a cost effective way to secure their network sessions. While not sufficient as a standalone security measure for complex enterprise environments, circuit level gateways can be a useful component of a complete security strategy. They provide an additional layer of security when used alongside next generation firewalls capable of deep packet inspection and application layer monitoring.
